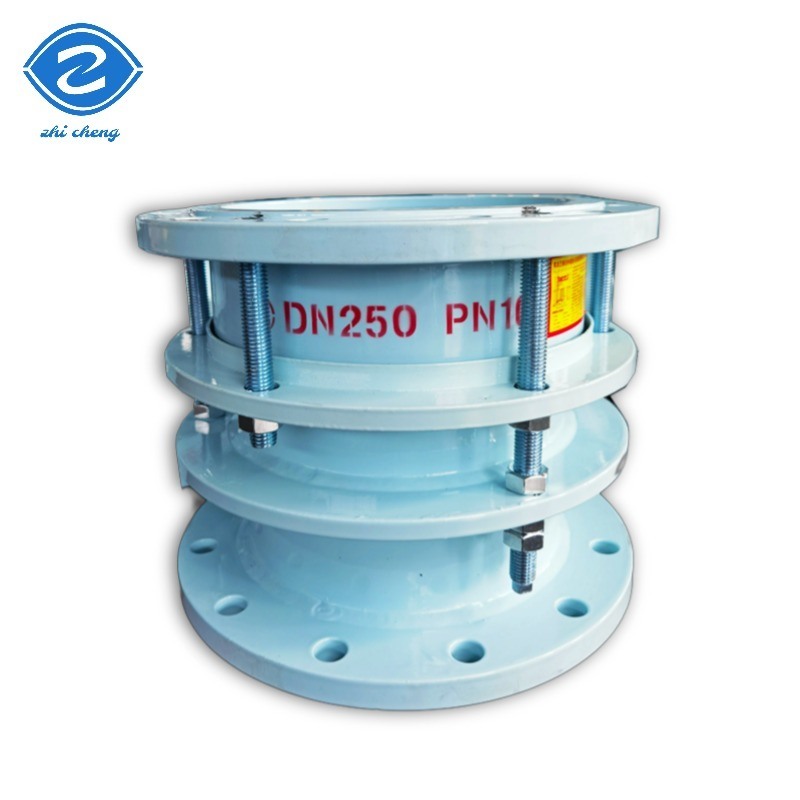

Pipe Connection Special Carbon Steel, Ductile Iron Double Flange Limit Device Telescopic Pipe Seal
Chemical Pipeline B2f Double Flange Expanded Metal Disassembly Joint
Product Description
The double flange limited expansion joint is composed of main parts, sealing rings, gland, telescopic short pipe and other
main components. On the basis of the original performance of the loose sleeve expansion joint, a limit device is added,
and a double nut is used for locking at the maximum expansion. Pipeline can be free to expand in the allowable expansion,
once exceeding its maximum expansion limit, to ensure the safe operation of the pipeline, especially for vibration or a certain
degree of inclination and bending in the pipeline connection.
Core Functional Roles
1. Displacement Compensation and Stress Elimination
Thermal Compensation: Absorbs axial displacement caused by temperature changes (-30℃ to 350℃)
in pipes (up to ±100mm according to the 2025 EJMA IV standard), preventing leakage at flange sealing
surfaces.
Vibration Buffering: Mitigates mechanical vibrations transmitted from pumps, compressors, and other
equipment (requiring vibration damping efficiency ≥90% in nuclear power fields), protecting sensitive
equipment.
Installation Alignment Correction: The spherical seal design allows for ±5° angular deflection, compensating
for alignment errors during pipe construction (such as misalignment caused by subsidence in underground conduits).
Datas above are only for reference,pls contact us for exact data and price!
Packaging & Shipping
The package should be accompanied by a valid certificate of product conformity, including the product name,
product marking, production date, manufacturer name, factory address, trademark and implementation standard
number.Ensure that the goods are delivered to the customer completely.
Product details
The material of double flange limited expansion joint is mainly Q235 carbon steel, stainless steel, cast steel,
ductile iron and so on. Different materials and models are chosen for different purposes.
Company Information
The factory was established in 1985, integrating design, manufacture, processing and sales. The main product series include:
rubber expansion joints, bellows expansion joints and flexible metal hoses. Widely used in petroleum, chemical, metallurgy,
power, construction, thermal power, water supply and other industries.
Henan Zhicheng Valve Fittings Manufacturing Co., Ltd. is a professional manufacturer
that specializes in the research, development, production, and sales high-quality pipeline
fittings, focusing on the production of products such as rubber joints, disassembly joints,
and compensators.
The factory strictly adheres to the ISO 9001 quality management system, and every link
from raw material procurement to finished product shipment undergoes strict quality.
Our rubber joints and pipe fittings comply with industry standards (such as AWWA, EN, GB, etc.),
ensuring high durability and excellent performance
FAQ:
Q:Are you trading company or manufacturer?
A:We are manufacturer of rubber expansion joint, bellow ,flange adaptor and flange with more
than 14-years experience.
Q:Do you have products catalog?
A:Yes, we have. Please tell me your email or instant messager, we will send our catalog.
Q:Can you provide drawings and technical data?
A:Yes, our professional technical department will design and provide drawings and technical data.
Q:Do you provide samples? Is it free or charged?
A:Yes, we can offer sample free but shipping charges covered by customer. Q:Can the products
be manufactuered by customer's requirement?
A:Yes, the specifications stated above are the standard ones, we can design and manufacture
as requirement.
